AC Self-Heating

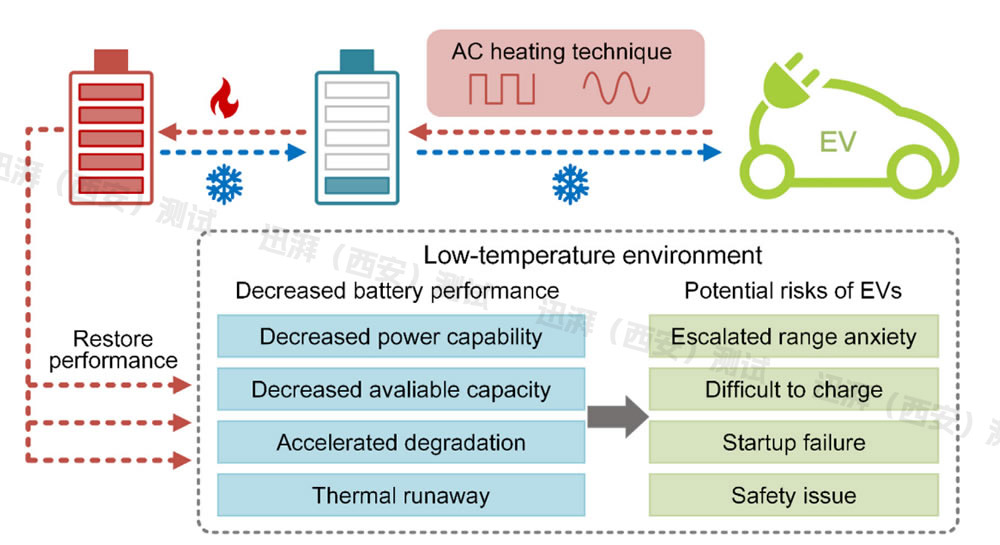

Current situation of the problem
Solution Strategy
-

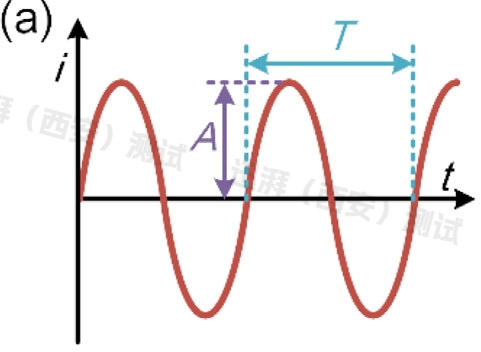

Sine wave (ASC)
-

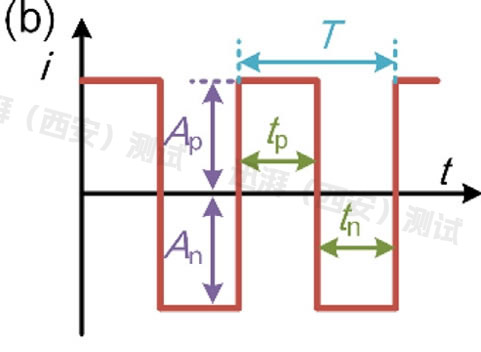

Square Wave (APC)
-

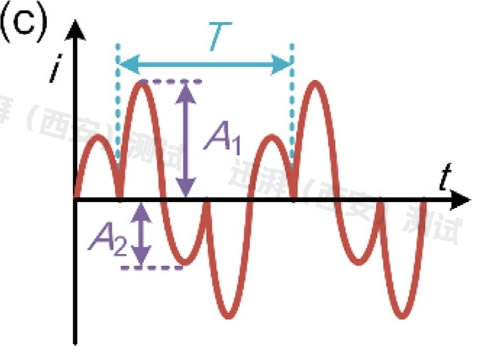

Variable Frequency Amplitude Variation (DSC)
-

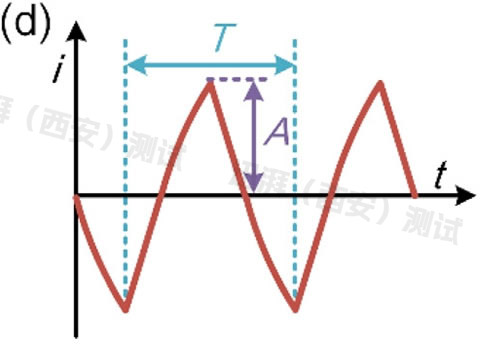

Triangle (TWC)
Test service
-
Verification of short-term temperature rise rate
-

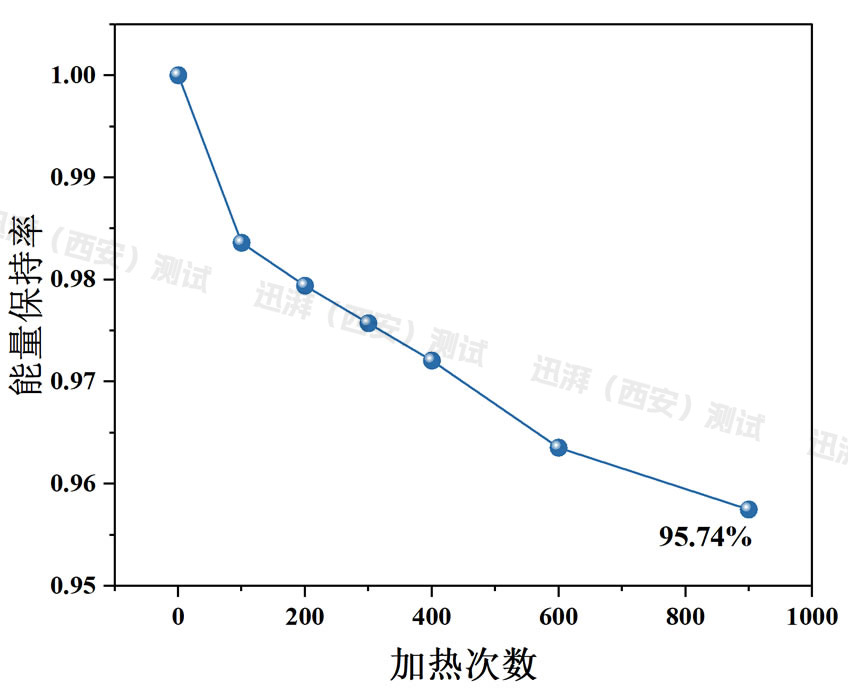

Long-term heating cycle durability verification
-

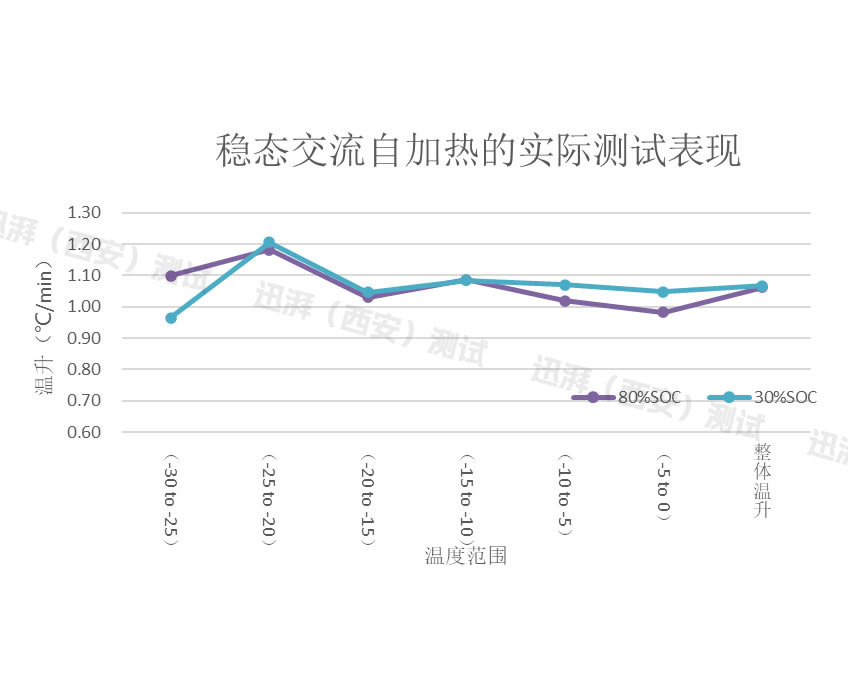

Formulation and implementation of uniform steady-state heating schemes
-

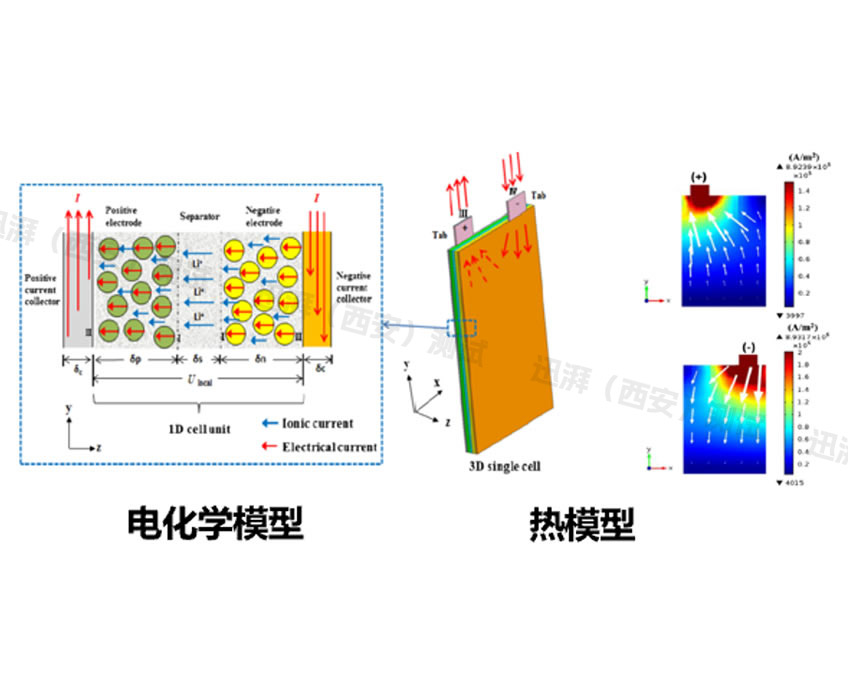

Ac heating life prediction model
-

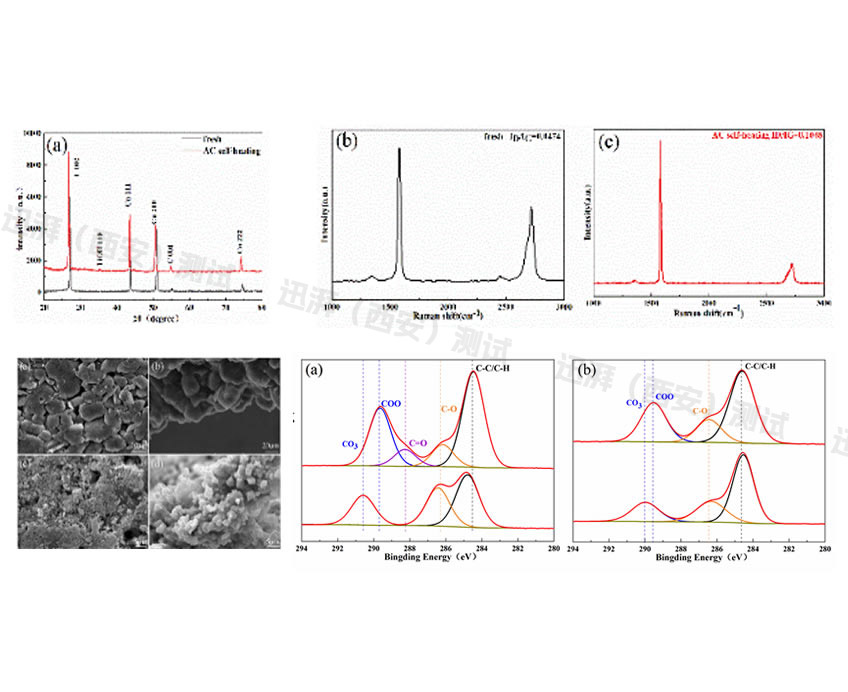

Aging mechanism analysis: Battery disassembly, material characterization
Advantages: High heating efficiency, low energy consumption, strong environmental adaptability, and comprehensive assessment of various performances
Industry Progress
| Application scenarios | Configuration plan (battery + motor + with or without external inductor) |
| Parking scene | Three-phase single motor + battery single module + no additional inductance solution |
| Three-phase single motor + battery single module + additional inductor solution | |
| Four-phase single motor + battery single module + no additional inductance solution (with boost charging function) | |
| Three-phase single motor neutral point lead-out + battery dual-module + additional inductor solution | |
| Three-phase dual motor + battery single module + no additional inductance solution | |
| Charging scene | Joint heating solution for the end of charging piles |
| Driving scene | Driving heating solution |
